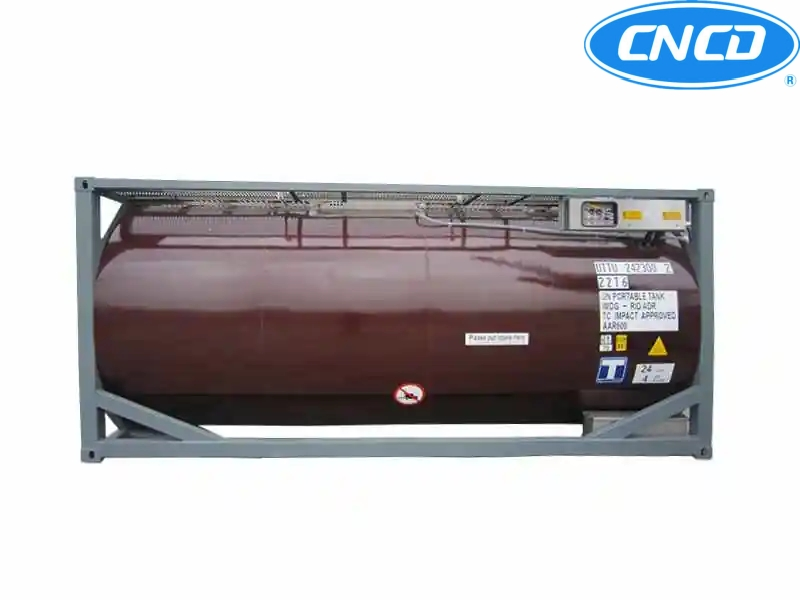

T11 Electric Heating Tank Container

Product Overview

The T11 electric heating tank container is an ISO-standard integrated electric heating and insulated tank container developed for low-temperature easy-to-solidify chemical media. It adapts to road, railway and sea multimodal transportation. Designed for low-temperature crystallizable and solidifiable materials such as asphalt, paraffin wax, heavy oil, resin and liquid chemical raw materials, it is equipped with an intelligent electric heating system and multi-layer thermal insulation structure to realize full-process temperature control and constant temperature storage. It thoroughly solves industrial pain points such as material solidification, wall adhesion, incomplete discharging and pipeline blockage during winter transportation and low-temperature storage, serving as a high-end special equipment for safe storage and transportation of viscous and easy-to-solidify industrial liquids.

Product Advantages

1. Intelligent Electric Heating System, Uniform Heating Without Local Overheating
2. Multi-layer Thermal Insulation Structure, Heat Preservation, Energy Saving and Stable Operation
3. ISO Standard Tank Body, Universal Compatibility For Multimodal Transportation
4. Closed Leak-proof Design, Compliant And Safe For Storage & Transportation
5. Non-adhesive Wall & Easy Cleaning, Complete Discharging Without Residue

Material & Process Details

Main Material: The tank body is made of pressure vessel special carbon steel/stainless steel (customizable), with high toughness, strong pressure resistance and corrosion resistance, suitable for long-term storage and transportation of various industrial viscous media with stable structure and no easy deformation.

Heating System Process: Adopting explosion-proof electric heating components with regular wiring, strong insulation, water and leakage resistance, suitable for complex industrial working conditions. The full-coverage heating area ensures uniform temperature rise and high temperature control accuracy, supporting interval constant temperature adjustment to meet the melting point requirements of different materials.

Insulation Layer Process: Adopting high-density flame-retardant thermal insulation filling material, fully enclosed and wrapped by outer protective steel plate, it features stable thermal insulation performance, flame retardancy and moisture resistance, no easy aging and falling off, with non-decaying thermal insulation effect in long-term use.

Welding & Testing Process: Adopting full-automatic precision welding with full and uniform welds. All welds pass ultrasonic and X-ray non-destructive testing. The whole machine undergoes full air tightness and water pressure testing, with no cracks or leakage and stable compliant pressure bearing performance.

Product parameters

Parameter Item	Specification
External Dimension	6058mm×2438mm×2591mm (Standard 20ft ISO Tank)
Rated Volume	25–32m³ (Customizable)
Applicable Media	Asphalt, heavy oil, paraffin wax, resin, viscous chemical oil, low-temperature easy-to-solidify liquid
Temperature Control Range	0℃–120℃ (High-temperature version customizable)
Heating Method	Explosion-proof electric heating constant temperature control
Insulation Structure	Multi-layer flame-retardant insulation + outer protective plate
Transportation Mode	Road, railway, sea multimodal transportation
Certification Standard	ISO standard, pressure vessel compliance test, explosion-proof safety certification
Custom Service	Material, volume, temperature control range, heating power and interface configuration can be customized on demand

Application Scenarios

1. Constant temperature transportation and storage of energy viscous materials such as asphalt, heavy oil and paraffin wax;
2. Winter thermal insulation and transfer of chemical resin, additives and high-viscosity liquid raw materials;
3. Constant temperature storage and transportation of easy-to-crystallize media in fine chemical and new material industries;
4. Long-distance combined transportation of materials in cross-regional low-temperature and winter environments;
5. Mobile constant temperature material storage and temporary transfer discharging scenarios in industrial parks.
