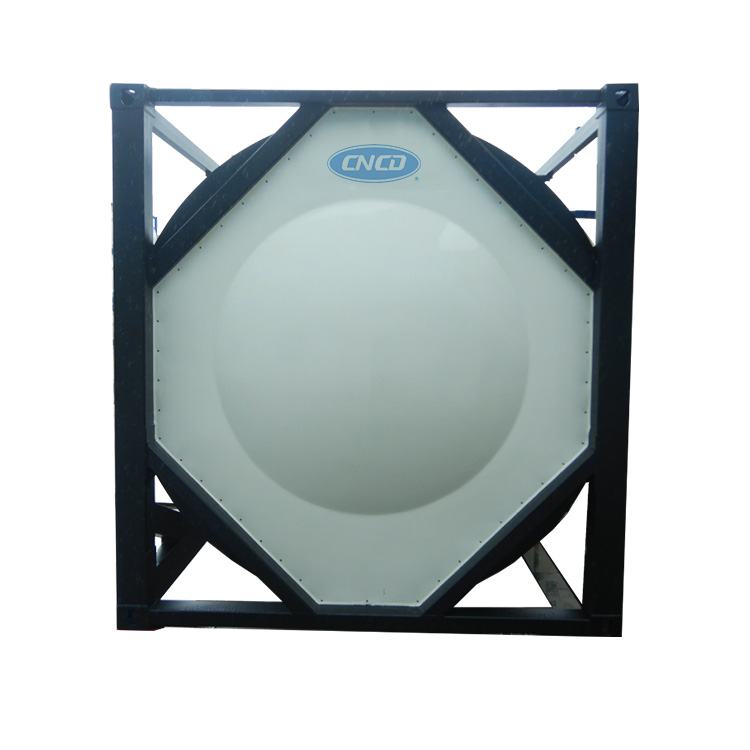

20ft food-grade ISO milk container (for fresh milk/raw milk transport)

Product Introduction UN T11 food-grade ISO tank container, used for large-volume multimodal transport of raw milk and liquid milk between dairy farms, milk stations, and dairy companies; double-layer polyurethane insulation, complete set of dairy hygiene accessories, CIP online cleaning; s……

Detailed introduction

Product Introduction

UN T11 food-grade ISO tank container, used for large-volume multimodal transport of raw milk and liquid milk between dairy farms, milk stations, and dairy companies; double-layer polyurethane insulation, complete set of dairy hygiene accessories, CIP online cleaning; suitable for sea freight, China-Europe freight train, and cross-border land transport; no unsanitary corners inside the tank, meets dairy hygiene standards, and can be customized for single or multi-warehouse operation.

Product parameters

Project	Parameters
External Frame Dimensions	6058×2438×2591mm, standard 20ft ISO container with ISO corner fittings
Effective Volume	2426 m³
Inner Tank Material	Standard SUS304-2B; Optional SUS316L Upgrade
Inner Wall Polishing	Mirror Polishing Ra ≤0.8μm, Corner Roundness R≥25mm
Insulation Layer	Polyurethane Foaming 70-100mm; 24h Temperature Change ≤1℃, Maintain Storage Temperature 0-4℃
Design Pressure	1.5-2bar (Micro-pressure)
Standard Accessories	Quick-opening Sanitary Manhole, 360° CIP Rotating Cleaning Ball, Sanitary Breathing Valve, Level Gauge, Baffle Plate
Optional Configurations	Onboard Refrigeration Unit, In-tank Agitator, Multiple Compartments, Remote Temperature Monitoring
Certificates	IMDGT11、CSC、CCS、BV、CE、ADR/RID
Maximum Gross Weight	36000kg, Approx. 3900 4050kg (Task Weight)

Product advantages

Food-grade Safe Material
Efficient Constant Temperature & Freshness Preservation
Durable, Compression and Shock Resistant
Intelligent Monitoring & Safe Control

Application Scenarios

It is professionally adapted to scenarios such as large-scale pasture milk collection, raw material transfer in dairy processing plants, long-distance cold chain logistics transportation, centralized distribution of dairy products in supermarkets, and storage and transportation of low-temperature dairy products. It can be adapted to various types of tractor heads and fixed tank equipment. It is a standardized cold chain storage and transportation equipment for the dairy industry.
