ISO Tank Container

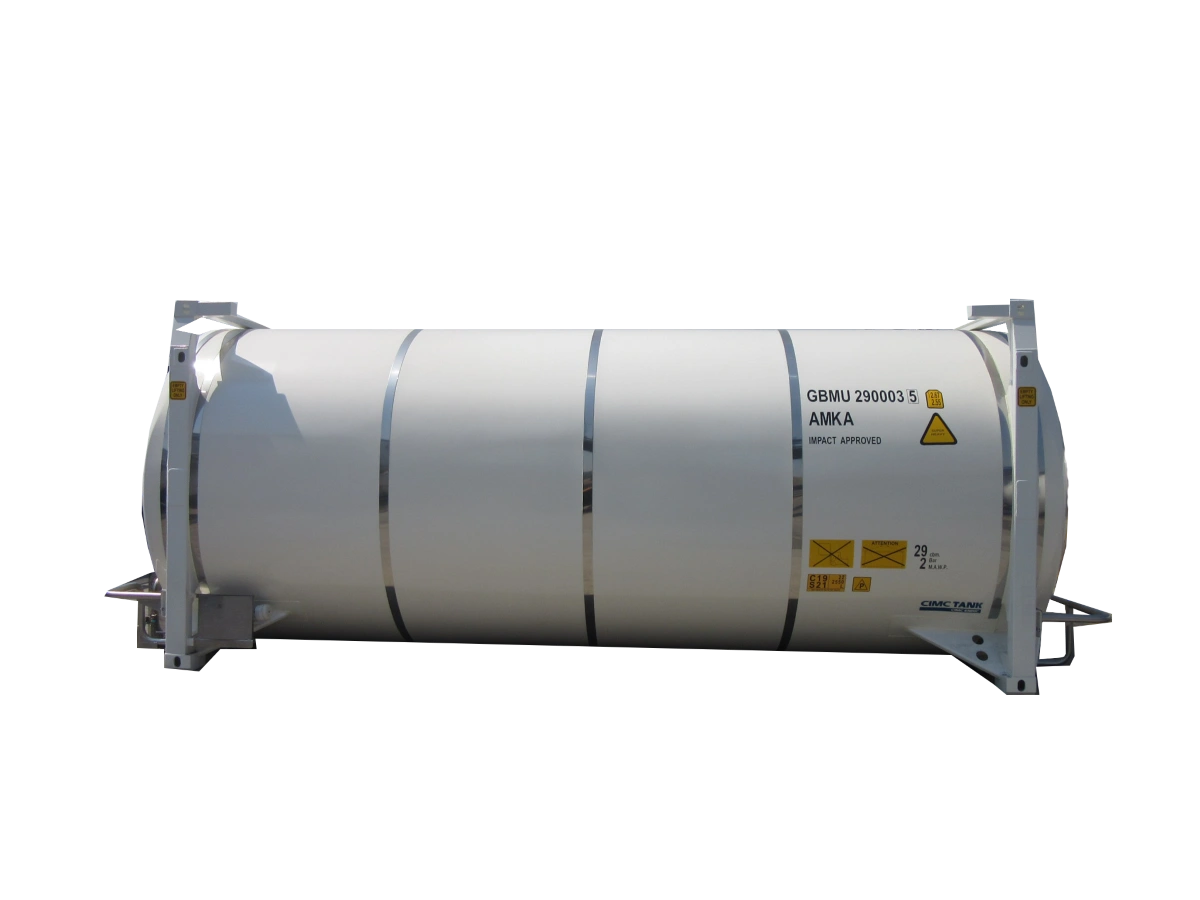

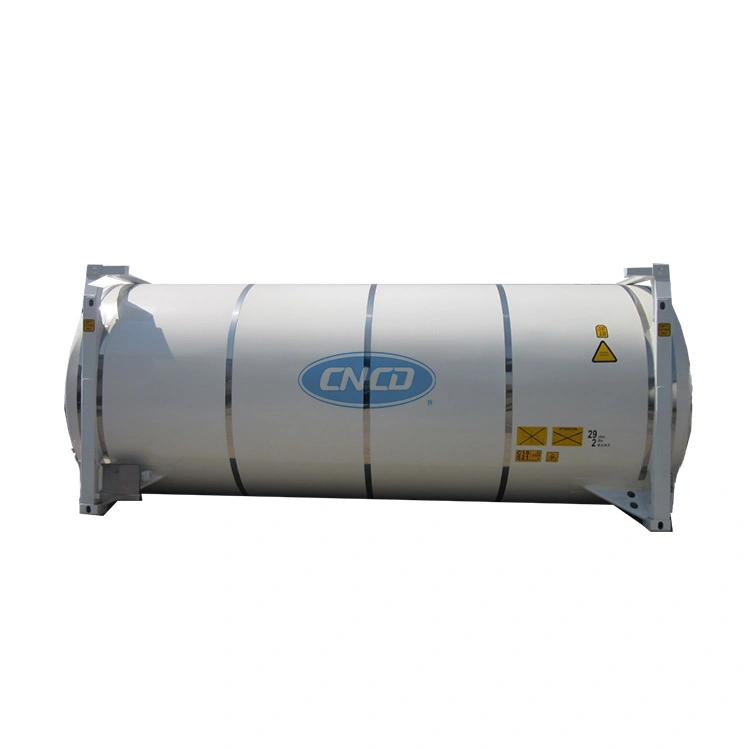

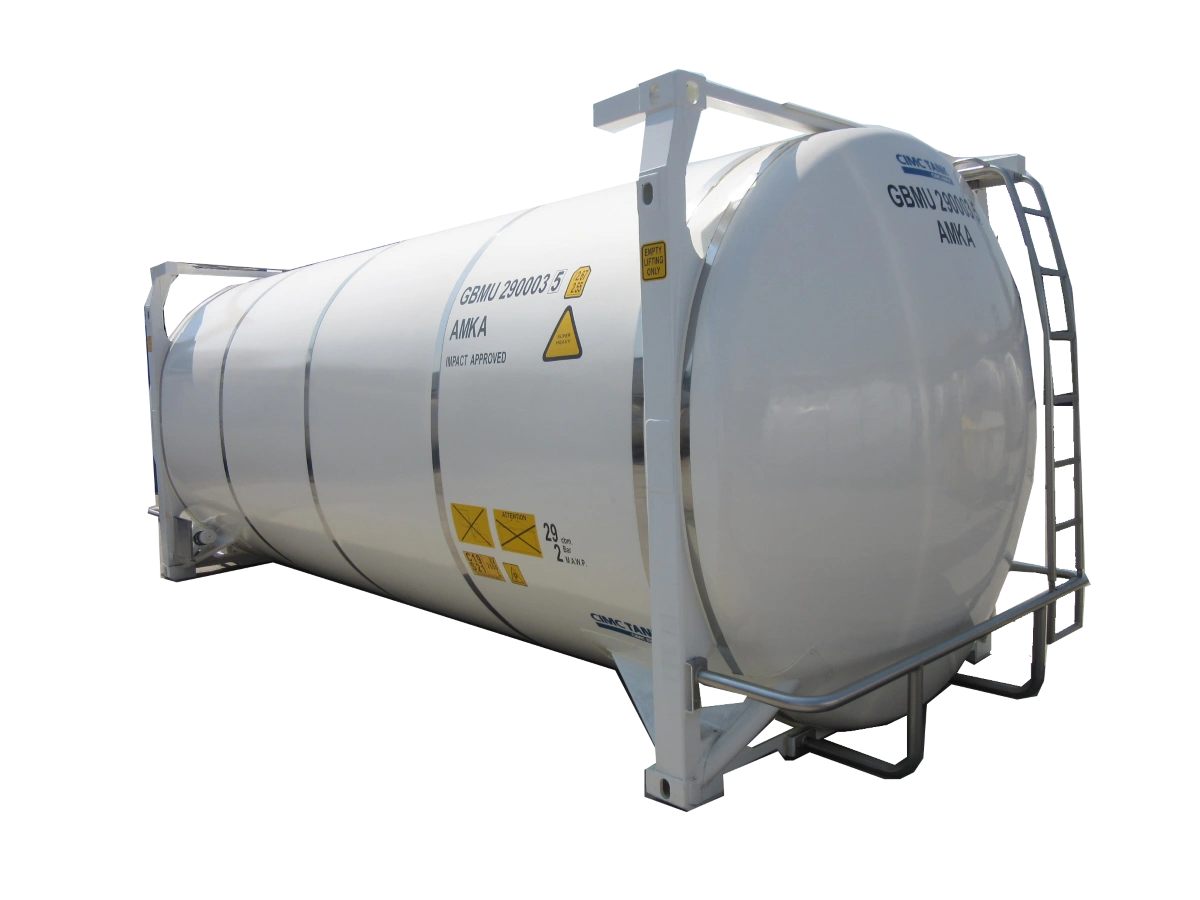

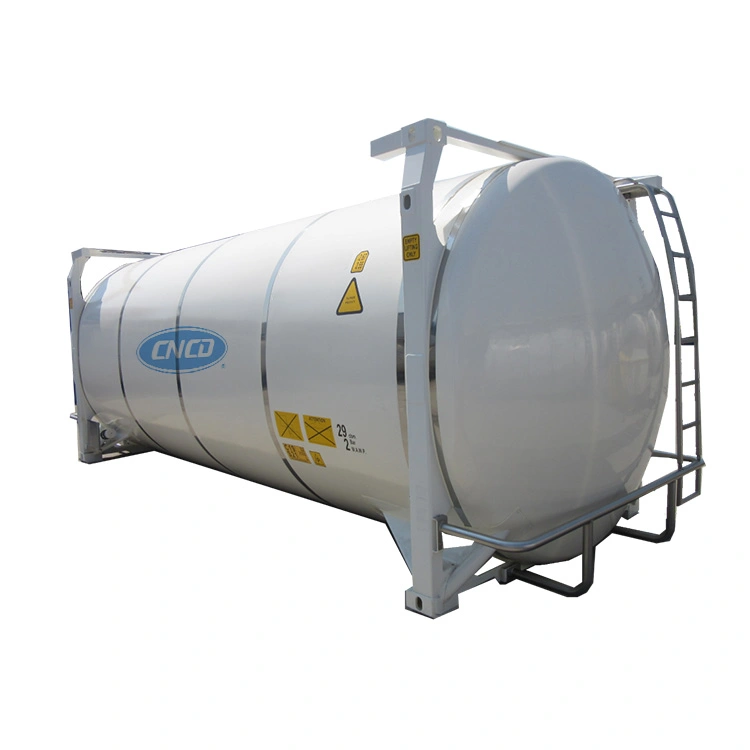

20ft ISO Tank Containers for Beer (Draft Beer/Unpasteurized Beer)

Product Introduction UN T11 pressure-resistant food-grade ISO tank containers, specifically designed for bulk transport of draft beer and unpasteurized beer; pressure-resistant tank body with light-proof structure to prevent light odor; equipped with a CO₂back pressure interface to complet……

Detailed introduction

Product Introduction

UN T11 pressure-resistant food-grade ISO tank containers, specifically designed for bulk transport of draft beer and unpasteurized beer; pressure-resistant tank body with light-proof structure to prevent light odor; equipped with a CO
₂
back pressure interface to completely isolate oxygen and protect beer flavor; supports sea freight, China-Europe freight train, and cross-border land transport; complete CIP cleaning system; customizable for single or multi-compartment containers.

Product Specifications

Project	Parameters
External Frame Dimensions	6058×2438×2591mm, standard 20ft ISO container with ISO corner fittings
Effective Volume	2426 m³
Inner Tank Material	Standard configuration: SUS316L (resistant to organic acid corrosion from beer)
Inner Wall Polishing	Mirror polishing Ra ≤0.8μm, corner radius R≥25mm
Insulation Layer	Polyurethane foam, 70-100mm thick, light-proof structure, stored at 2-8℃.
Design Pressure	4 bar; hydrostatic test pressure 6 bar
Standard Accessories	Pressure-resistant sanitary manhole, CO₂ back pressure inlet, safety valve + rupture disc, CIP cleaning ball, food-grade EPDM gasket, pressure gauge
Optional Configurations	Onboard refrigeration unit, multiple compartments, temperature recording module
Certificates	IMDGT11、CSC、CCS、BV、CE、ADR/RID
Maximum Gross Weight	36000kg, Approx. 3950 4100kg (Task Weight)

Product Features

Food-grade 304/316L stainless steel inner tank, hygienic & corrosion-resistant, meets food contact requirements
Integrated refrigeration & thermal insulation system, stable low-temperature storage to retain fresh beer taste
Fully polished inner wall, easy CIP cleaning, no beer residue, convenient for repeated use
ISO standard 20ft tank frame, compatible with sea, rail and road intermodal transportation
Independent safety valves & pressure monitoring devices to guarantee transport safety
Customizable capacity, inlet/outlet ports and temperature range according to client requirements
ADR, IMDG and CSC certified, available for international cross-border shipment

Application

Suitable for bulk transport of draft beer, unpasteurized raw beer and craft beer. Widely used for brewery outbound delivery, cross-border beer import & export, long-distance beverage logistics, large beer festivals and beverage wholesale distribution.
