Air Separation Equipment

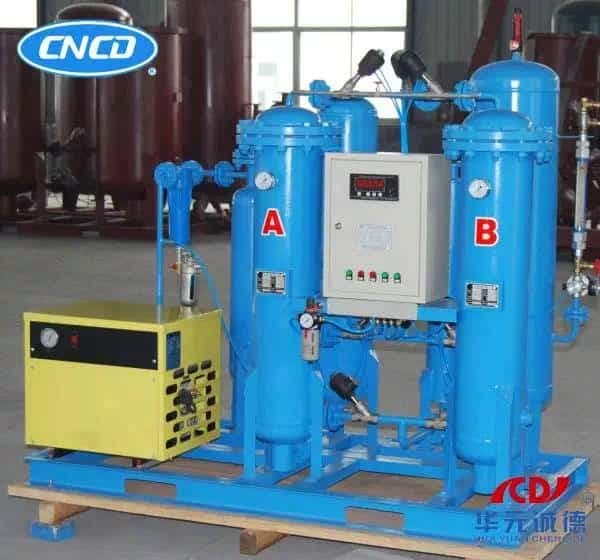

PSA Nitrogen Generator

Working Principle:
The pressure swing adsorption (PSA) nitrogen generator uses carbon molecular sieve as the adsorbent and uses the difference in the adsorption amount of oxygen and nitrogen molecules in the compressed air to directly produce it from the compressed air through the principle of pressure adsorption and pressure reduction desorption. Gas separation equipment for product nitrogen.

Detailed introduction

High Efficiency Industrial PSA N2 Gas Generators Plant Nitrogen Generator Machine

Product Features:

Fast and stable on-site product nitrogen production, qualified nitrogen can be produced in as little as 10 to 20 minutes; Select more efficient and stable molecular sieves and adopt unique PSA energy-saving technology, resulting in lower energy consumption; Standard configuration of molecular sieve water pollution protection alarm device and multiple molecular sieve protection technology ensures that the nitrogen generator can operate longer and more stably; The air tank, nitrogen tank and nitrogen generator are prefabricated on the same pry, making it easy and quick to install on site; Optional L-TECH multi-function monitoring system and remote wireless monitoring system can realize local monitoring and remote monitoring of equipment, and can realize remote system upgrade, so that the system operating conditions can be fully controlled; Special models can be customized to meet petroleum and petrochemical, pharmaceutical and food, ASME, explosion-proof, classification society certification, etc.

Application:

Food industry, chemical industry, coal industry, petroleum industry, metallurgical industry, medical industry, etc.

Technical Parameter:

Nitrogen Capacity	50-3000 Nm³/h
Nitrogen Purity	99%—99.9995%
Nitrogen pressure	0～0.8MPa (0.8～6.0MPa available)
Usage	Nitrogen production
Type	Pressure swing adsorption(PSA)
Color	7.5bar(g)
Air inlet temperature	blue white or customized

Field Installation:

Our company have the design and installation qualification of GB1, GC2 and GC3 pressure pipeline which can supply customers with professional pressure pipeline solutions.

Pressure pipeline design,installation in spection, certification, transformation, maintenance one-stop service fast, professional, efficient and safe to solves problems, ask user rest assured, relax and comfortable.
