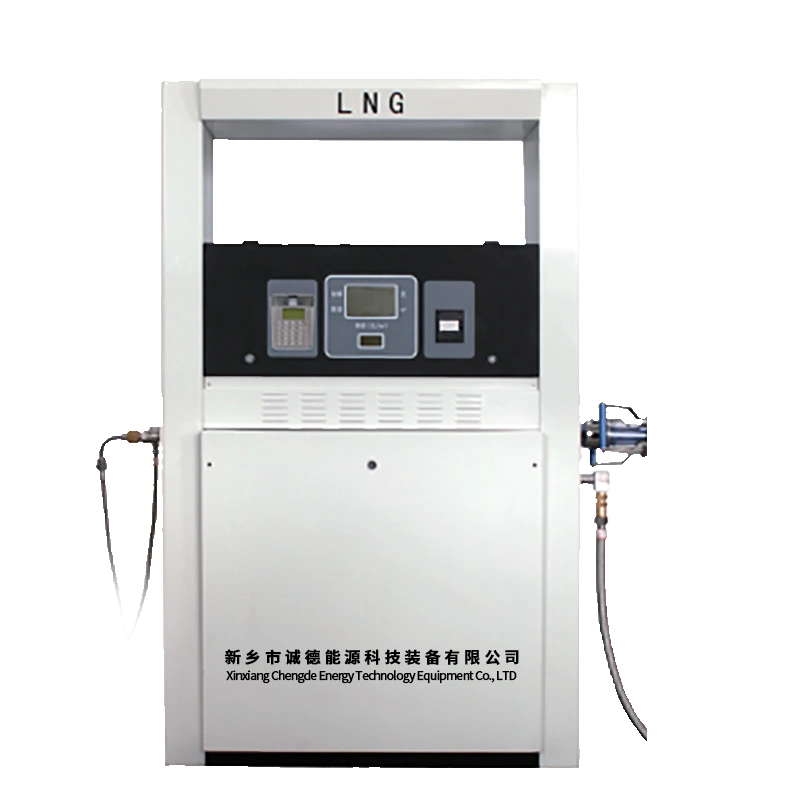

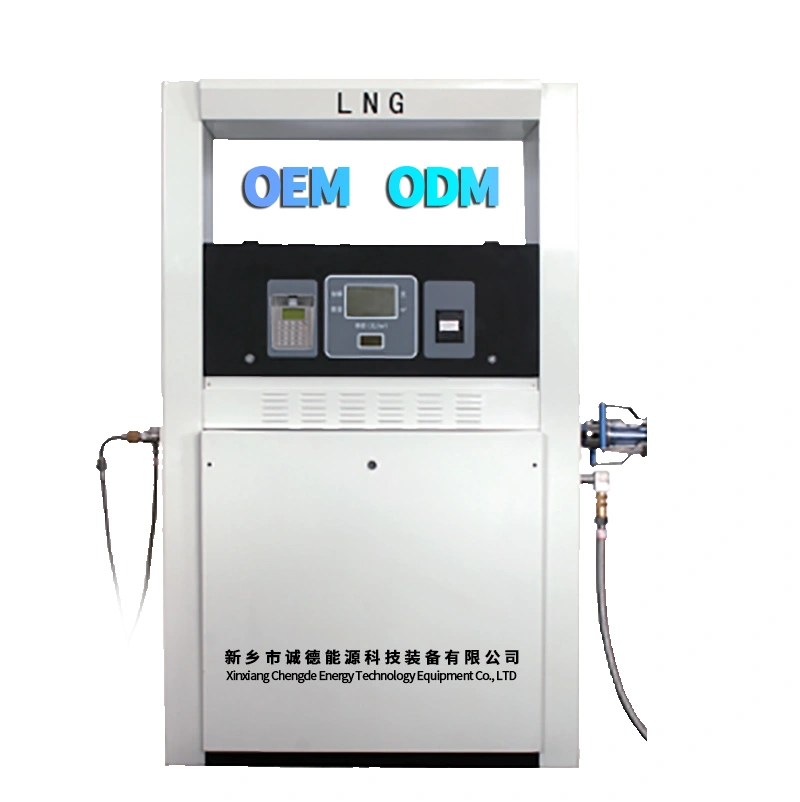

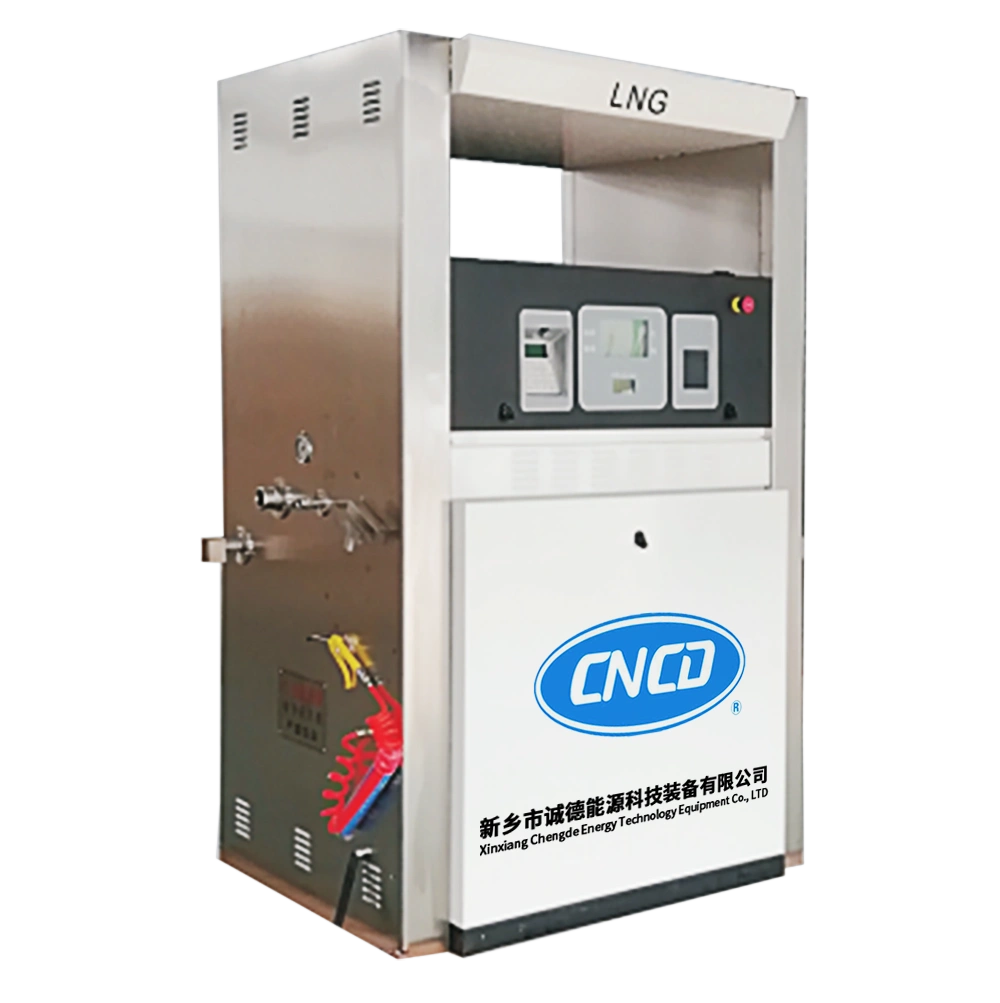

LNG Dispenser for Lng Filling Station

  • Product Introduction LNG Filling Machine is the core equipment of liquefied natural gas (LNG) filling station, which is used to accurately fill LNG vehicles (such as LNG trucks, buses, ships, etc.). This equipment has the characteristics of high-precision measurement, safety and reliability, a……
Enquire Now
Tel: +86-373-2677103

Detailed introduction

Product Introduction

LNG Filling Machine is the core equipment of liquefied natural gas (LNG) filling station, which is used to accurately fill LNG vehicles (such as LNG trucks, buses, ships, etc.). This equipment has the characteristics of high-precision measurement, safety and reliability, and automatic control, and is widely used in LNG filling stations, oil and gas combined stations and mobile filling stations.

LNG Dispenser Features

1.Capable of saving the data when out of power,extending the display time and repeating display

2.Capable of saving 1000 refueling records,whichis queryable

3.Printer(Option)

4.Equipped with IC Card Reader

5.Leaves the communication ports ,so it can communicate with the filling station management system

6.Can do OEM as required

7.Can connect with mobile phone to check anydata any time anywhere,also set unit price anttime.

Specifications

NameLNG Dispenser
Applicable mediumliquefied natural gas (LNG), liquid nitrogen
Flow range10kg/min~80 kg/min
Maximum working pressure1.6MPa
Ambient temperature25℃~55℃
Pipeline temperature-196℃~55℃
Unit of measurementkg
Minimum reading scale value0.01kg or yuan
Single measurement range0~9999.99 kg or yuan
Cumulative measurement range99999999.99 kg or yuan
Unit price setting range0~99.00 yuan/kg
Preset quantitative range1~9999.99 kg or yuan
Flow meterGermany E+H, USA Emerson
Liquid filling hose stainless steel low temperature hose 4m
Liquid filling gun headLNG special liquid filling gun (imported or domestic liquid filling gun into the liquid filling nozzle)
Gas phase pipe jointquick connector
Working power supply220VAC ± 10% 50Hz ± 1Hz
Machine power≤80W
Explosion-proof gradeExde ibmb II A T3 Gb
Machine weight≈360kg
Overall dimensions(length) 1250 × (width) 550 × (height) 2080 mm
